Product Description:

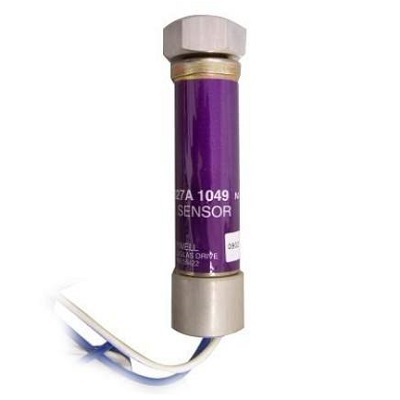

C7027A type ultraviolet flame detector is suitable for the monitoring of gas, liquid (oil) fuel, non-continuous combustion (stop at least once within 24 hours) flame.
C7027A must cooperate with the corresponding combustion safety controller of Honeywell Company. (such as RA890G, FC1000A, EC7800 series controllers, etc.).
C7027A should be installed at one end of the light pipe outside the furnace. The connection method is screw connection.
C7027A and the combustion safety controller should be connected with shielded wires, and the distance should not be too long (generally <100 meters).
Technical Parameters - Honeywell C7027A UV Flame Detector
C7027A1023 operating environment -18°C...102°C, lead wire length 2.4m
C7027A1031 operating environment -40°C...102°C, lead length 2.4m
C7027A1049 operating environment -18°C...102°C, lead wire length 2.4m
C7027A1064 operating environment -40°C...102°C, lead length 7.3m
C7027A1072 operating environment -40°C...102°C, lead wire length 2.4m
C7027A1080 operating environment -18°C...102°C, lead wire length 2.4m
