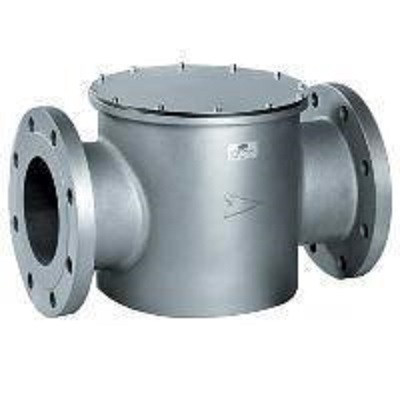

Product Description:
Filters for internal gas piping to DIN 3386 with high dust collection capacity.
GF/1: threaded connection according to ISO 7/1 standard,
GF/3: Flange connection according to DIN 2501 standard part 1, suitable for connecting pre-welded flanges in accordance with DIN 2633, ISO 7005-2 standards.
Maximum flow velocity: 20 m/s.
A pressure measuring connection for monitoring the filter can be installed.
application
Types GF/1, GF/3 and GF are used to protect the gas and air filters of subsequent valves.
技术参数 - 冬斯GF燃气过滤器
| 型号 | 连接Rp | 最大工作压力bar |
| GF40040/3 | DN40 | 4.0 |
| GF40050/3 | DN50 | 4.0 |
| GF40065/3 | DN65 | 4.0 |
| GF40080/3 | DN80 | 4.0 |
| GF400100/3 | DN100 | 4.0 |
| GF40125 | DN125 | 4.0 |
| GF40150 | DN150 | 4.0 |
| GF40200 | DN200 | 4.0 |
