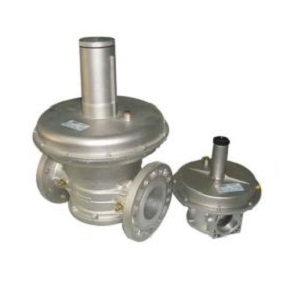

Product Description:
The DUNGS Model FRS Pressure Regulator is a pressure regulator with an adjustable rating spring. This pressure regulator meets the requirements of EN88 and DIN3380.
Input pressure up to 500mbar
Large circulation
The outlet pressure of the regulator can be adjusted stably, accurately and sensitively
Preloaded balanced diaphragm
safety diaphragm
Complete internal pulse for regulator outlet pressure, external pulse connection optional on both sides
Threaded connection Rp3/8 - Rp2
Flange connection DN20 - DN150
Gas pressure regulators are suitable for gas burners and gas appliances.
It does not contain ferrous metals and is suitable for gases with H2S content up to 0.1% by volume.
Suitable for gas series 1, 2, 3 and other neutral gaseous media.
Technical Parameters - DUNSE FRS Gas Pressure Regulator
Model Connection Rp Maximum Working Pressure mbarFRS503Rp3/8500FRS505Rp1/2500FRS507Rp3/4500FRS510Rp1500FRS515Rp1-1/2500FRS520Rp2500FRS5040DN40500FRS5050DN50500FRS5065DN65500 FRS5080DN80500FRS5100DN100500FRS5125DN125500FRS5150DN150500
