Product Description:

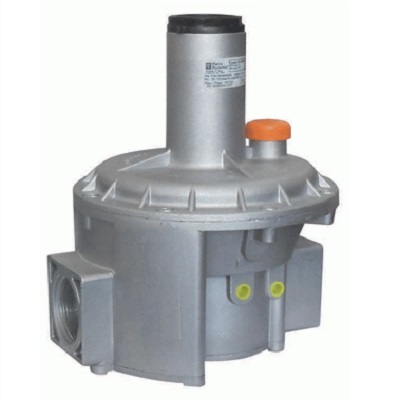

Italian FiorenIini pressure regulator is a direct-acting regulator. It mainly adjusts the stable outlet pressure through the direct comparison value between the outlet pressure and the pre-set adjustment spring.

The minimum and maximum inlet pressure changes that affect the outlet pressure change are protected by the built-in triple safety diaphragm of the regulator.

All regulators are built-in overpressure relief tube. And there is a RP 1/4" threaded interface pressure measuring hole plug and filter device at the inlet.

Technical Parameters -

●Working pressure range: +2 5 mbar to +500 mbar (0.25 l<pa to 50 l<pa)

●Maximum allowable inlet pressure: Ps 1 bar (100. Kpa)

●Stable pressure range: 5-300 mbar (0.5 l<pa-30. Kpa) (refer to the spring diagram)

●Thread interface: 1/2" "2"

●Flange interface: DN25”DNl00

●Voltage regulation accuracy: ±15%

●Closing pressure: SG 1 5%-25% of the inlet setting pressure

●Used gas: natural gas (LNG), liquefied petroleum gas (LPG), city gas, biogas, non-corrosive gas and air

●Applicable temperature: 1 5”600C

●Pressure rating: PN l

●Thread and flange specifications: DlN2999 lS07/1 DlN2633 PN 1 6

●Gas grade: 1 "2, 3

●Filtration grade: ≤50 μm
