Product Description:

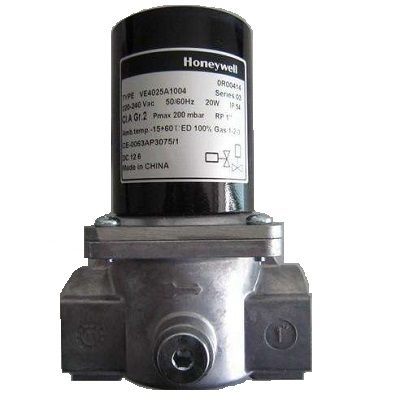

VE4000A1-series solenoid valve has no flow adjustment function, on-off, normally closed, quick opening threaded connection solenoid valve Honeywell company UGV series solenoid valve can be used for fuel supply control of various gas burners. Solenoid valves range from DN10 to DN100 (1/2"...4"); including quick opening and quick closing; flow adjustment; thread or flange connection; various types such as normally closed and normally open are available.

VE400AA is ignition solenoid valve, VE4000 (A, B, C) is "A" pole normally closed solenoid valve.

Solenoid valve power supply: 24V, 110V and 220V, 50/60Hz. The common type is: 220V, 50/60Hz;

Operating environment temperature: -15°C...+60°C;

The opening time of VE4000A/B valve is less than 1 second, and the opening frequency is less than 20 times/minute;

The opening time of VE4000C valve is adjustable from 5 to 30 seconds, and the opening frequency is <1 time/minute;

Solenoid valve closing time: <1 second;

Protection level: IP54, optional IP65.

Technical Parameters - Honeywell VE4000A1 Series Gas Solenoid Valve

Commonly used models Power supply voltage Pipeline size Maximum air supply pressure (mbar)

VE4010A1006 230V 3/8" 360

VE4015A1005 230V 1/2" 360

VE4020A1005 230V 3/4" 200

VE4025A1004 230V 1" 200

VE4032A1000 230V 1-1/4" 500

VE4040A1003 230V 1-1/2" 200

VE4050A1002 230V 2" 200

VE4065A1000 230V 2-1/2" 200
