Product Description:
DUNGS gas multifunctional combination regulator is closely combined with filter, regulator, valve and pressure monitor. Different structural forms can be realized through the modular system
Dirt depositor: fine filter
One regulator and two valves: B01
One primary valve, one secondary valve
One fast opening valve, one fast or slow opening valve
Solenoid valve up to 360 mbar to DIN EN 161 class A category 2
The output pressure can be adjusted sensitively by using the proportional regulator according to DIN EN 88 class A type 2
High flow values at low differential pressure
DC Solenoid Valve Drive with Disturbance Degree N
Main flow restrictor and partial flow restrictor for valve V2
Hydraulic opening hysteresis
Pipe threaded flange unions conforming to ISO7/1

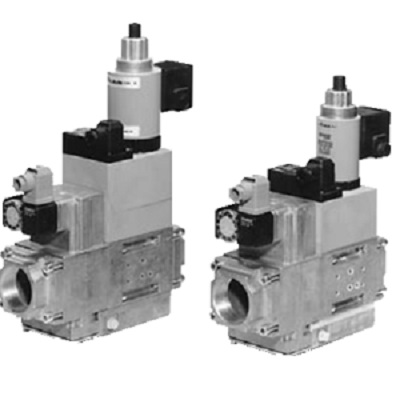

Technical parameters - Dongsi MB-ZRDLE two-stage gas solenoid valve group
Type DN/Rp Opening time s
MBZRD405B01 Rp1/2 <1
MBZRD407B01 Rp1/2 <1
MBZRDLE405B01 Rp3/4 20
MBZRDLE407B01 Rp3/4 20
MBZRD410B01 Rp1 <1
MBZRD412B01 Rp1 <1
MBZRDLE410B01 Rp1-1/4 20
MBZRDLE412B01 Rp1-1/4 20
MBZRD415B01 Rp1-2 <1
MBZRDLE415B01 Rp1-2 20
MBZRD420B01 Rp1-2 <1
MBZRDLE420B01 Rp1-2 20
