Product Description:
The safety cut-off (on/off) feature conforms to EN161 standard, and is used in conjunction with SIEMENS gas valves
open slowly, close quickly
ultra low power consumption
Suitable for Class I, II, III gas
Optional end switch (factory setting)
plug connection
The SKP75... is used as a proportional control to regulate the gas pressure according to the pressure of the combustion air to ensure combustion within the entire load range
The gas/air ratio remains constant.
It is mainly used in forced draft burners.

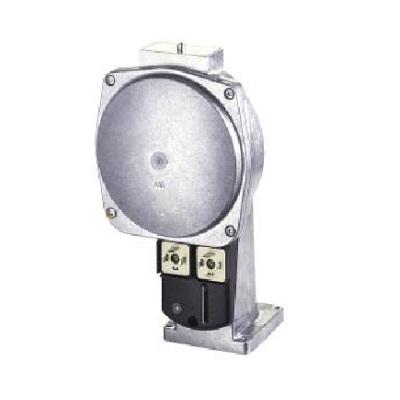

Electrohydraulic SKP...actuators are used with valves for gas and air I…III. They are mainly used in gas burning installations. The actuator opens slowly but closes quickly. They can be combined with any of the valve types and sizes mentioned above. The actuator is equipped with end switches (to verify the fully closed condition).
For valve sizing information, refer to the Valve Dimensional Drawings in the relevant valve data sheet.
*This series is used to replace the discontinued SKP70 series
Technical Parameters - Siemens SKP75 Gas Valve Actuator
Power supply AC100-110V AC220-240V
Safety cut-off, without end switch, with air-fuel ratio controller SKP75.003E1 SKP75.003E2
Safety cut-off, with terminal switch, with air-fuel ratio controller SKP75.001E1 SKP75.001E2
Safety cut-off, without end switch, with air-fuel ratio controller, with greater parallel displacement SKP75.503E1 SKP75.503E2
Safety cut-off, with end switch, with air-fuel ratio controller, with greater parallel displacement SKP75.501E1
