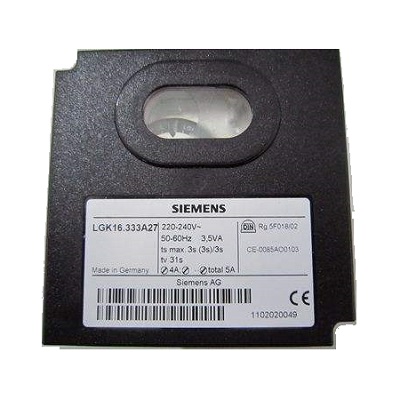

Commonly used models: LGK16.322A27 /LGK16.333A27/LGK16.335A27
Product Description:
LGK16...combustion controller, control and monitor forced draft large and medium-sized gas burners with multi-stage or continuous proportional regulation in continuous operation
Monitor flame signals in real time, and initiate safety actions in time when faults occur (such as detector failures, detector cables, false flame signals, etc.)
With self-test flame signal amplifier.
With air pressure monitoring and damper control
remote reset
Technical parameters - Siemens LGK16 series gas burner controller
Product model t1(S)TSA max.(S)t3(S)t4(S)t5(S)t6(S)LGK16.122A2710246410LGK16.133A279336314.5LGK16.322A273624101012LGK16.333A2731.536121218LGK1 6.335A2737.52.5512.512.515LGK16.622A276624101012LGK16 .635A2767.52.5512.512.515
t1: pre-purge time
TAS: safe time
t3: pre-ignition time
t4: Interval time from TSA start to port 19 valve opening
t5: Interval time from the end of t4 to proportional regulation or port 20 valve opening
t6: post-purge time
Product Description
LGK16 series controllers are suitable for natural gas, oil and dual fuel burners (depending on the type of flame detector used)
