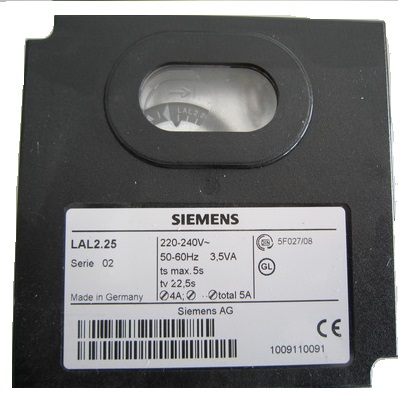

Use model: LAL1.25 LAL2.25 LAL2.65
Product Description:
LAL... oil combustion controller, controls and monitors intermittent operation of multi-stage or proportional adjustment medium and large oil burners
LAL1...Yellow and blue flame oil burners without air pressure monitoring
LAL2...Yellow flame oil burner with air pressure monitoring
LAL3.25 is suitable for special equipment, such as incinerator systems
LAL4...Yellow and blue flame oil burners with air pressure monitoring
Technical parameters - Siemens LAL series gas burner controller
Product Model Input Voltage (V)t1(S)TSA max.(S)t3(S)t3n(S)t4(S)LAL1.2522022.552.5-7.5LAL2.2522022.552.5-7.5LAL2.6522067.552.5-7.5
t1: pre-purge time
TAS: ignition safety time
t3: pre-ignition time
t3n: long ignition time
t4: Interval time between solenoid valve 1 and solenoid valve 2
Product Description
LAL1.25 is suitable for single-stage medium and large burners
LAL2.25 is suitable for various oil burners
LAL2.65 is suitable for medium heavy oil burners
