Product Description:
For RIELLO gas burners, proportional modulating burner control.
Based on the principle design of microprocessor controller. It can be used for one or more stages of fire control, forced ventilation, intermittent operation, and monitoring of gas burners.
It is designed and manufactured by Siemens according to the technical requirements of Riello.
Forced draft gas burners comply with EN298 standard.

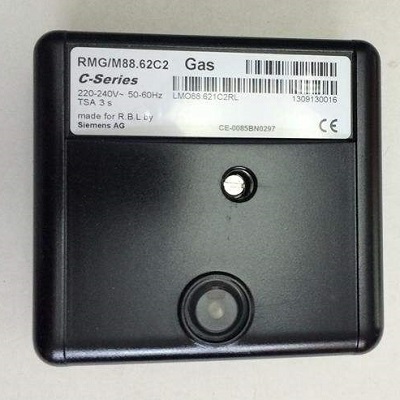

Technical Parameters - Riello RMG/M88.62C2 Gas Burner Controller
Type Voltage TW
max TSA
max T1
min T3N
min T4
min T10
min T11
min T12
min runtime flame
disappearing response
RMG88.62C1 110V 2s 3s 25s 2s 10s 10s .. 15s Lock
RMG88.62C2 220V 2s 3s 25s 2s 10s 10s .. 30s Lock
RMG/M88.62C2 220V 2s 3s 20s 2s 10s 10s 35s 30s Lock
