MVD505/5MVD507/5 Dongsi DUNGS gas solenoid valve

Germany DUNGS valve group DUNGS solenoid valve

DMV-D 503/11, DMV-D 507/11, DMV-D 512/11, DMV-D 520/11, DMV-D525/11,

DMV-D 5040/11, DMV-D 5050/11, DMV-D 5065/11, DMV-D 5080/11, DMV-D5100/11, DMV-D 5125/11

DMV-DLE 503/11, DMV-DLE 507/11, DMV-DLE 512/11, DMV-DLE 520/11,

DMV-DLE 525/11, DMV-DLE 5040/11, DMV-DLE 5050/11, DMV-DLE 5065/11,

DMV-DLE 5080/11, DMV-DLE 5100/11, DMV-DLE 5125/11, DMV-SE512/11, DMV-SE 520/11

MB-VEF 407 B01 S10 AC230V, MB-VEF 407 B01 S30 AC230V,

MB-VEF 410 B01 S30 AC230V, MB-VEF 412 B01 S30 AC230V,

MB-VEF 415 B01 S30 AC230V, MB-VEF 420 B01 S30 AC230V,

MB-VEF 425 B01 S30 AC230V

MB-ZRDLE 405 B01 S20, MB-ZRDLE 405 B01 S50, MB-ZRDLE 407 B01S20, MB-ZRDLE 407 B01 S50,

MB-ZRDLE 410 B01 S20, MB-ZRDLE 410 B01 S50, MB-ZRDLE 412 B01S20, MB-ZRDLE 412 B01 S50,

MB-ZRDLE 415 B01 S20, MB-ZRDLE 415 B01 S50, MB-ZRDLE 420 B01S20, MB-ZRDLE 420 B01 S50,

MB-DLE 405 B01 S20, MB-DLE 405 B01 S50, MB-DLE 407 B01 S20, MB-DLE 407B01 S50,

MB-DLE 410 B01 S20, MB-DLE 410 B01 S50, MB-DLE 412 B01 S20, MB-DLE 412B01 S50,

MB-DLE 415 B01 S20, MB-DLE 415 B01 S50, MB-DLE 420 B01 S20, MB-DLE 420B01 S50,

MVD 205/5, MVD 207/5 MVD 210/5, MVD 215/5, MVD 220/5, MVD 225/5, MVD2040/5, MVD 2050/5, MVD 2065/5, MVD 2080/5, MVD 2100 /5, MVD 2125/5, MVD2150/5,

MVDLE 205/5, MVDLE 207/5, MVDLE 210/5, MVDLE 215/5, MVDLE 220/5,

MVDLE 225/5, MVDLE 2040/5, MVDLE 2050/5, MVDLE 2065/5, MVDLE2080/5,

MVDLE 2100/5, MVDLE 2125/5, MVDLE 2150/5,

MVD 503/5, MVD 505/5, MVD 507/5, MVD 510/5, MVD 515/5, MVD 520/5, MVD525/5, MVD 5040/5, MVD 5050/5, MVD 5065/5, MVD 5080/5, MVD 5100/5, MVD5125/5, MVD 5150/5.

Flange connection complies with DIN 2633, ISO7005 requirements.

□ Reliable function, high efficiency, no maintenance required. Working environment temperature: -15 -- +60 ℃

□ Designs that do not contain ferrous metals can also be provided according to user requirements.

Closing time: <1 second.

Opening time: open slowly for 1-20 seconds. Fast opening < 1 second. Flow adjustment: manual.

Boot part material: Adjustment housing aluminium, steel, brass.

Service life:

MV/4, MVD…/5 series: 1000/h

MVD 2200 type, MVDLE.../5 series: 100/h

MVD 2125/5, MVD 2150/5, MVD 5100/5, MVD 5125/5, MVD 5150/5: 20/h

MV 5125/5 S type, MV 5150/5 S type: 20/h

application

□ This type of solenoid valve is used in gas burners and gas equipment. It can be used for insurance, limit limit, gas input prevention and gas input and other functions when the gas is guided.

□ Suitable for MV/4 with high breaking capacity, such as pulse application (pulse ignition). The solenoid valve MV of DUNGS is suitable for 1, 2, 3 gas series and other neutral gaseous media.

Function

□ MV/4, MV/5: single-stage solenoid valve, closed without current, quick open, quick close.

□ MVD/5: single-stage solenoid valve, closed without current, quick opening, quick closing, the main flow regulating mechanism can manually limit the flow of gas.

□ MVDLE/5: single-stage solenoid valve, no current closing, slow opening, fast closing, opening time and quick opening stroke range adjustment mechanism, main flow adjustment mechanism.

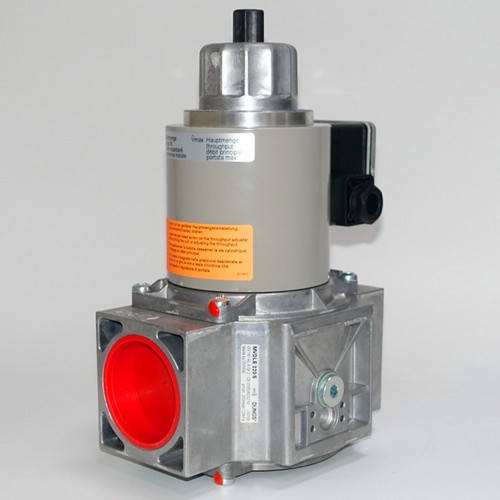

NGS coil code Mag.Nr.200 solenoid valve MVD507/5
