Product Description:
Proportion nozzles for burners of various brands such as Riyadh, Black & Decker, Weishaupt, Ego, and Belden

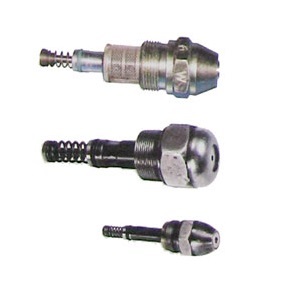

This nozzle is exclusively for Weishaupt proportional control burners. The fuel injection quantity can be adjusted in proportion.
Flow meter -- Weishaupt proportional nozzle
model
Flow (KG/H)
W50-110 110
W50-125 125
W50-140 140
W50-160 160
W50-180 180
W50-200 200
W50-225 225
W50-250 250
W50-275 275
W50-300 300
W50-330 330
W50-360 360
W50-390 390
W50-420 420
W50-490 490
Oil nozzle for large industrial heavy oil burner
Model Angle
500Kg/h 45 degrees 60 degrees 80 degrees
700Kg/h 45 degrees 60 degrees 80 degrees
800Kg/h 45 degrees 60 degrees 80 degrees
900Kg/h 45 degrees 60 degrees 80 degrees
1000Kg/h 45 degrees 60 degrees 80 degrees
1100Kg/h 45 degrees 60 degrees 80 degrees
1200Kg/h 45 degrees 60 degrees 80 degrees
1400Kg/h 45 degrees 60 degrees 80 degrees
1600Kg/h 45 degrees 60 degrees 80 degrees
1800Kg/h 45 degrees 60 degrees 80 degrees
2000Kg/h 45 degrees 60 degrees 80 degrees
2200Kg/h 45 degrees 60 degrees 80 degrees
2400Kg/h 45 degrees 60 degrees 80 degrees
Nozzles with other flows, models and angles can be ordered.
